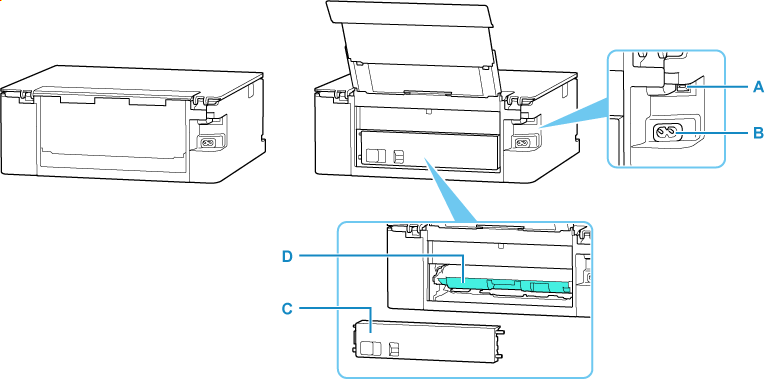

Rear View

Image showing the rear of the printer
A: USB Port
Plug in the USB cable to connect the printer with a computer.
B: Power Cord Connector
Plug in the supplied power cord.
C: Rear Cover
Detach when removing jammed paper.
D: Transport Unit
Open when removing jammed paper. When removing the unit, do so after placing a finger on the depression in the center right.

Important

  • Do not touch the metal casing.

  • Do not plug in or unplug the USB cable while the printer is printing or scanning with the computer. This can cause trouble.
